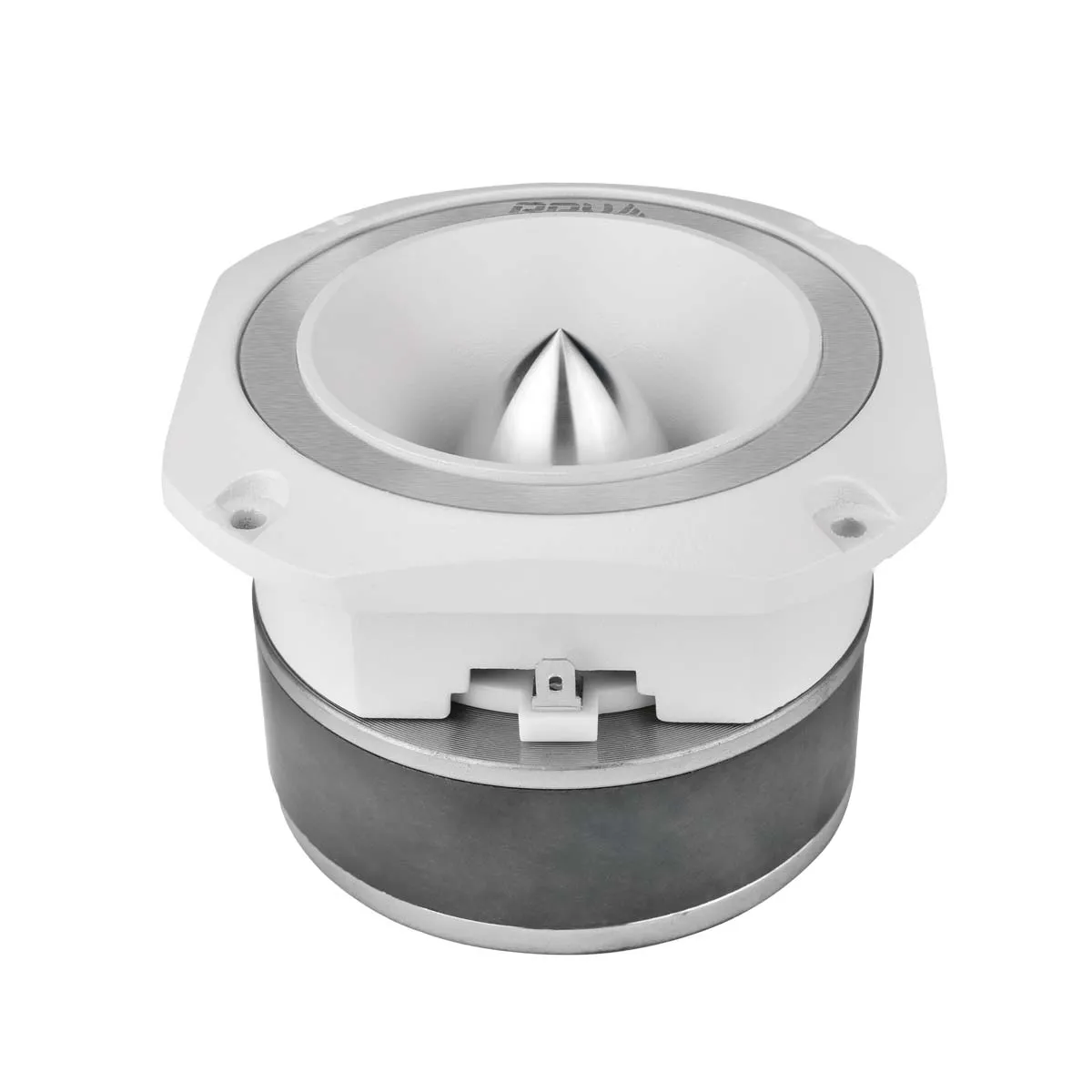

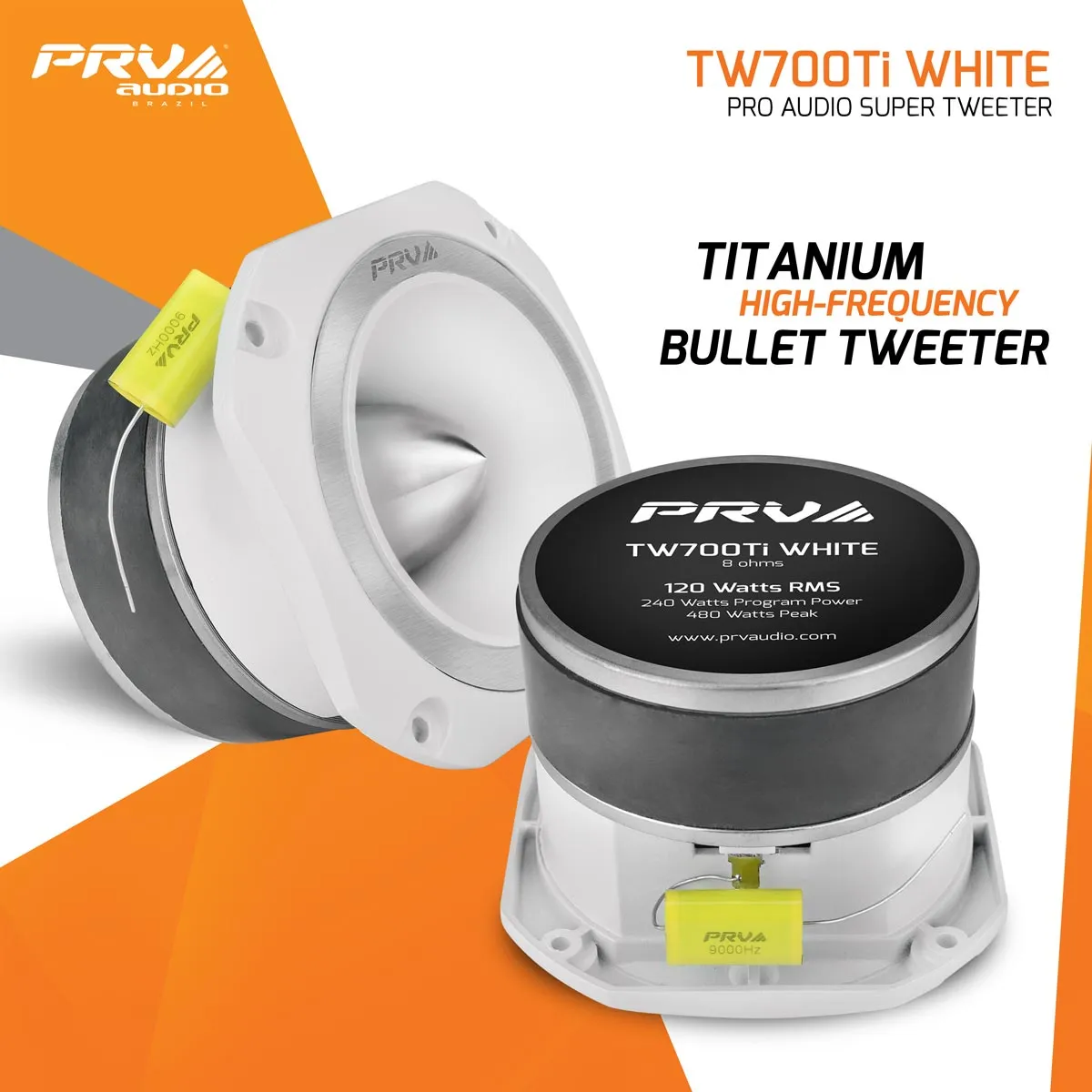

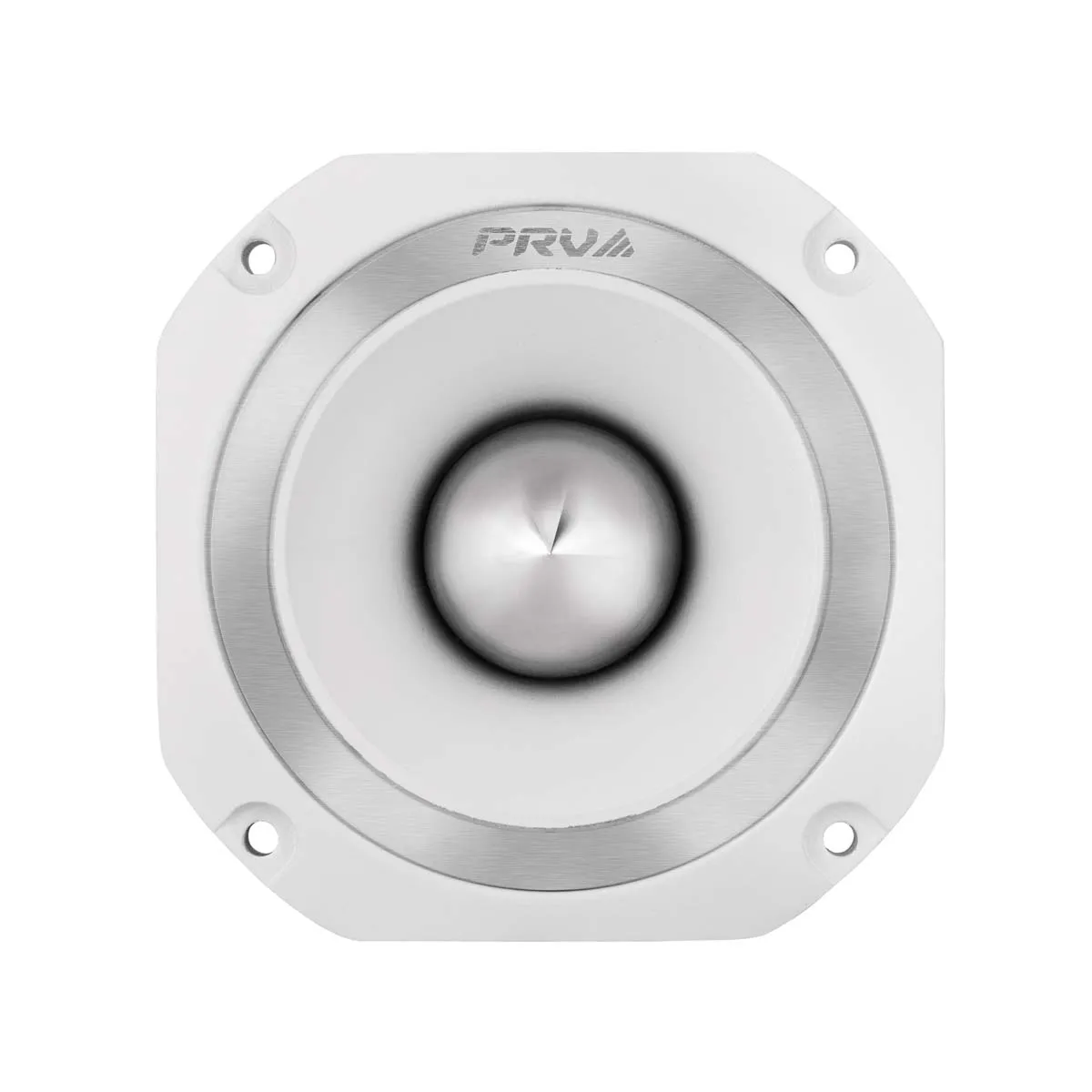

Add detail to any speaker with PRV Audio’s TW700Ti WHITE titanium bullet super tweeter! With high frequency response up to 20,000 Hz and a sensitivity of 107 dB at 1W/1m, the TW700Ti Series PRO Audio Tweeter can keep up with even the most demanding speaker systems.
Flat sides allow for close side by side mounting. Double magnet that efficiently increases the magnetic field into the gap, delivering high sensitivity and low distortion.
Not only does this PRO audio bullet tweeter look as good as it sounds it is also able to take a huge amount of power due to its 1.5″ diameter copper voice coil. Up to 240 watts of musical program power are on tap with a 12 dB/octave crossover at 5,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems.
Highlights
- 4″ Square PRO Audio Super Tweeter – 8 Ohm
- High Temperature 1.5″ diameter voice coil capable of handling up to 480 Watts of peak power
- Rated at a true 120 Watts Continuous RMS power. Making this tweeter able to handle musical program power up to 240 Watts of amplifier RMS power
- Designed for high frequency reproduction at a high SPL level with low distortion thanks to its large motor

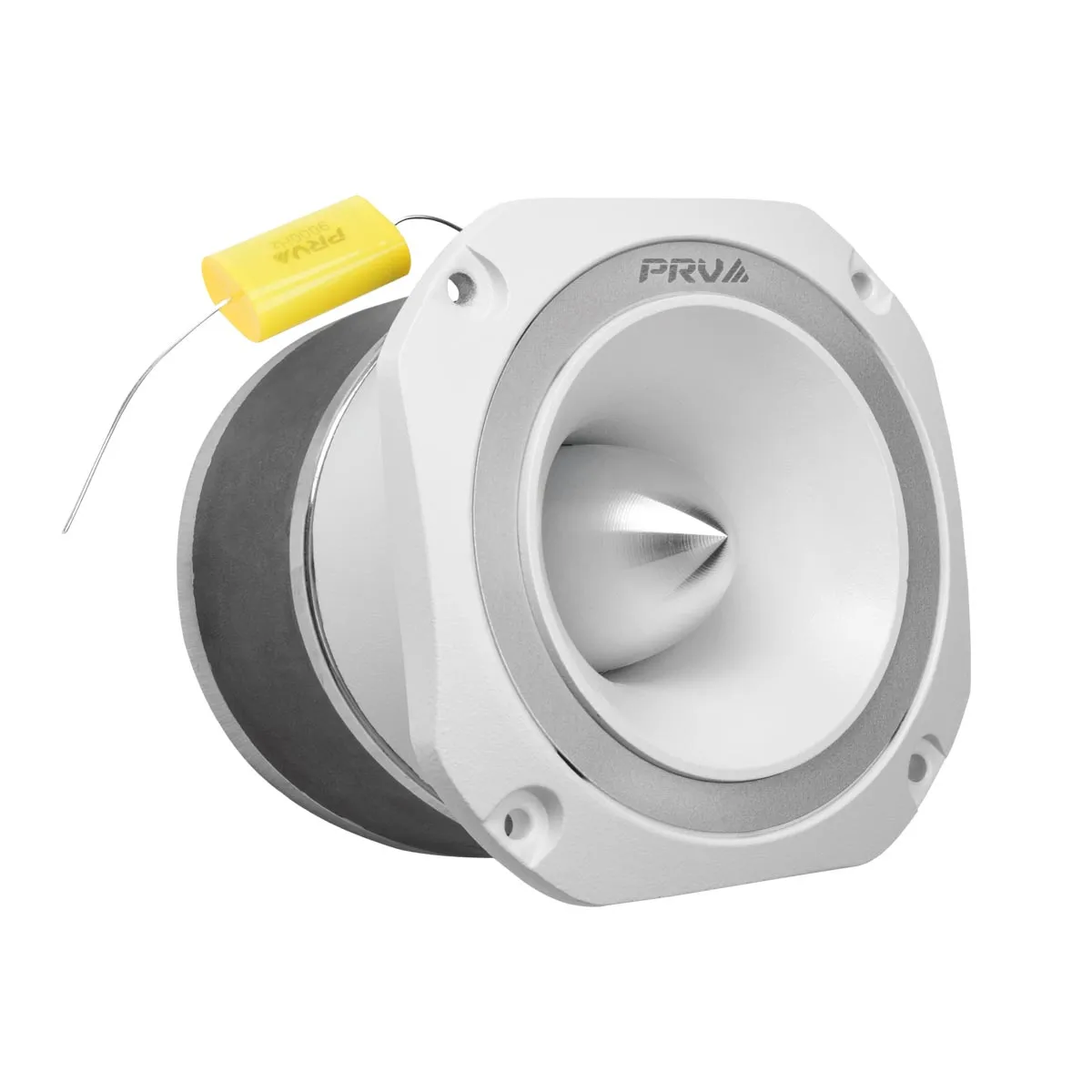

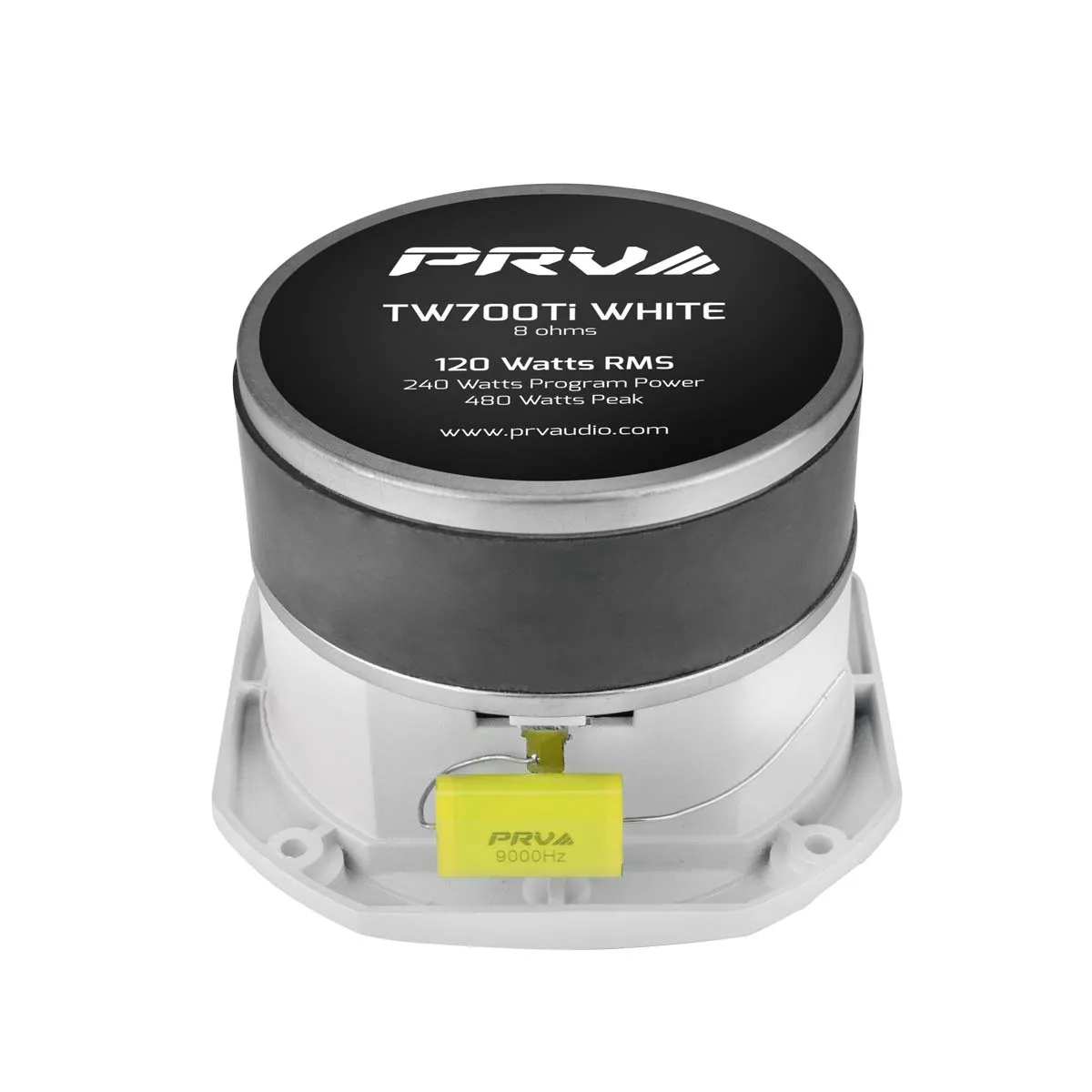

A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.
Recommended Settings with DSP / Crossover
We strongly recommended ALWAYS to use a high pass filter ( HPF ) on or to the amplifier channel that will be running the tweeters.
If you have just a high output crossover such as: EX3.5 STEREO or EX4.6 PRO – Use the HIGH OUT channel to feed the amplifier input with a HPF set to:
At 5000Hz – if you are running just a speaker and tweeter setup
At 8000Hz – If you are running a 3-Way system ( speaker, phenolic driver and tweeter )
If you are taking your system to the next level and tuning it with a digital signal processor: DSP 2.4X or DSP 2.8X – Set on the channel to feed the amplifier input with a HPF set to:
At 5000Hz at LR18 – if you are running just a speaker and tweeter setup
At 7000Hz at LR24 – If you are running a 3-Way system ( speaker, phenolic driver and tweeter )
GENERAL SPECIFICATIONS
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 120 Watts |
| Program Power | 240 Watts |
| Sensitivity 2.83V at 1m | 107 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 5000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 3,500 – 20,000 Hz |
| Voice Coil Diameter | 1.5”(38 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.60 T |
| Magnet Material | Ferrite |
EXTRA INFO

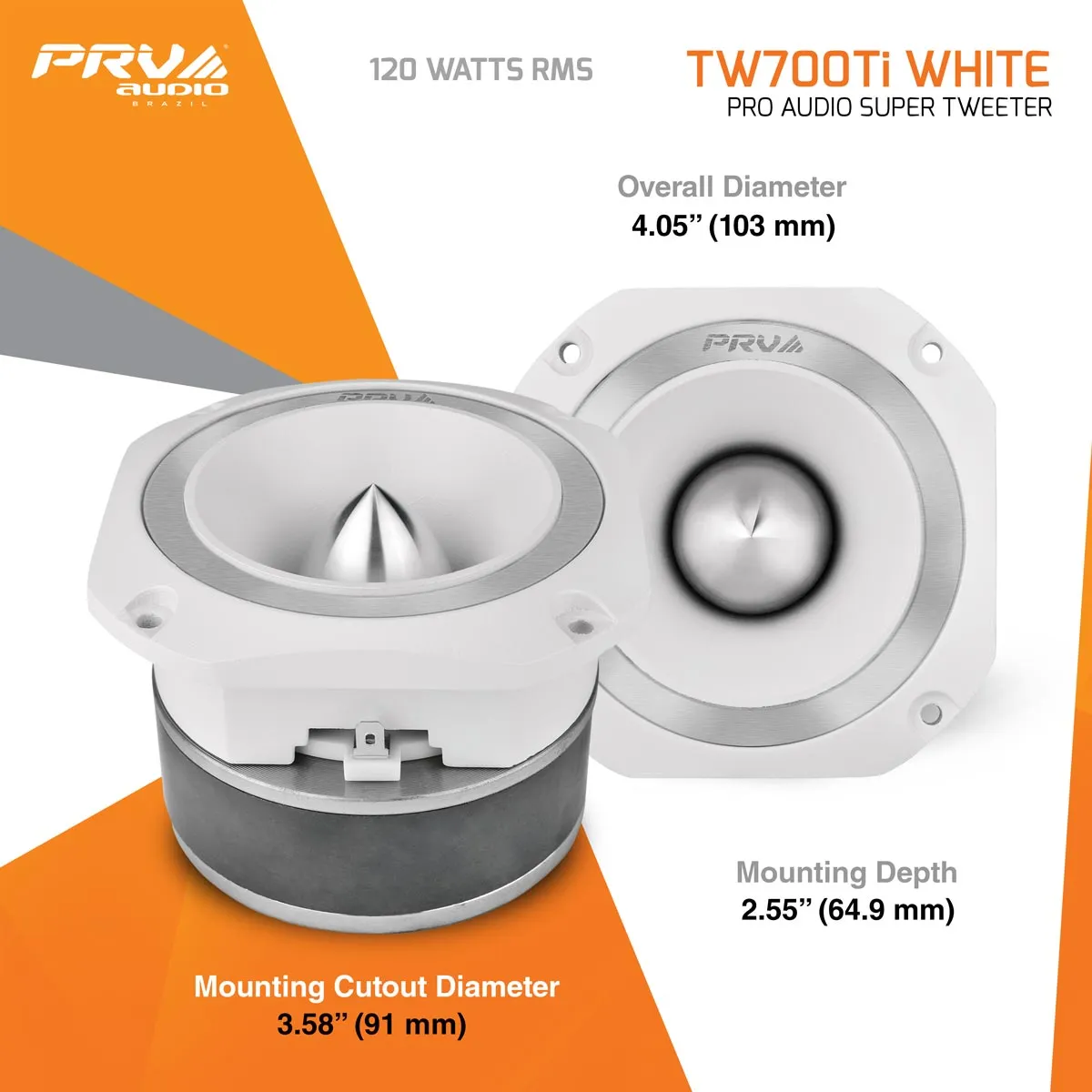

| Overall Depth | 2.97" (75.54 mm) |
| Mounting Depth | 2.55" (64.9 mm) |
| Overall Width | 4.05" (103 mm) |
| Overall Height | 4.05" (103 mm) |
| Cutout Diameter | 3.58" (91 mm) |
| Net Weight | 3.48 lbs (1.58 kg) |
| Shipping Weight | 3.62 lbs (1.64 kg) |
| Carton Dimensions W x L x H | 4.5" x 4.5" x 3.25” (114 x 114 x 82.5 mm) |
